FYRE BOX
Outdoor Digital Display System — Full Component Breakdown

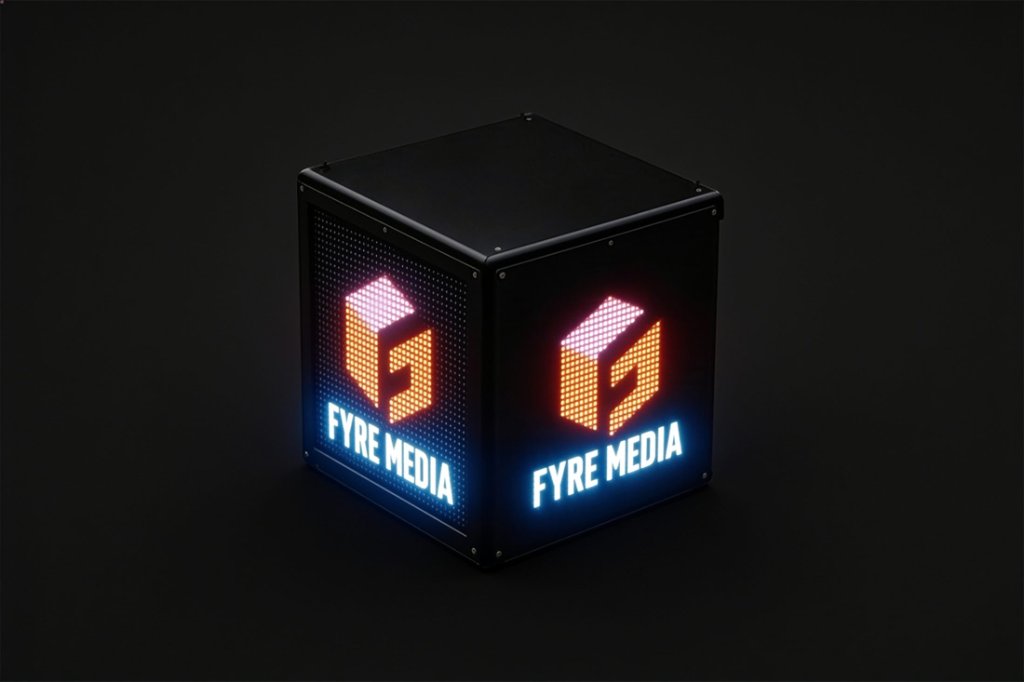

The Fyre Box is a rugged outdoor LED display unit combining a high-brightness LED module, an Android-based multimedia control system, power conversion, active cooling, and optional 4G/GPS connectivity, housed in a powder-coated enclosure.
14.75kg
Total Weight
IP65
Waterproof
≥5,500nits
Brightness
≥100,000hrs
Lifetime
System Architecture
How It All Connects
Tap any node to jump to its detailed spec sheet.
Fan cools the card · Connectivity feeds data into the control card
LED Module

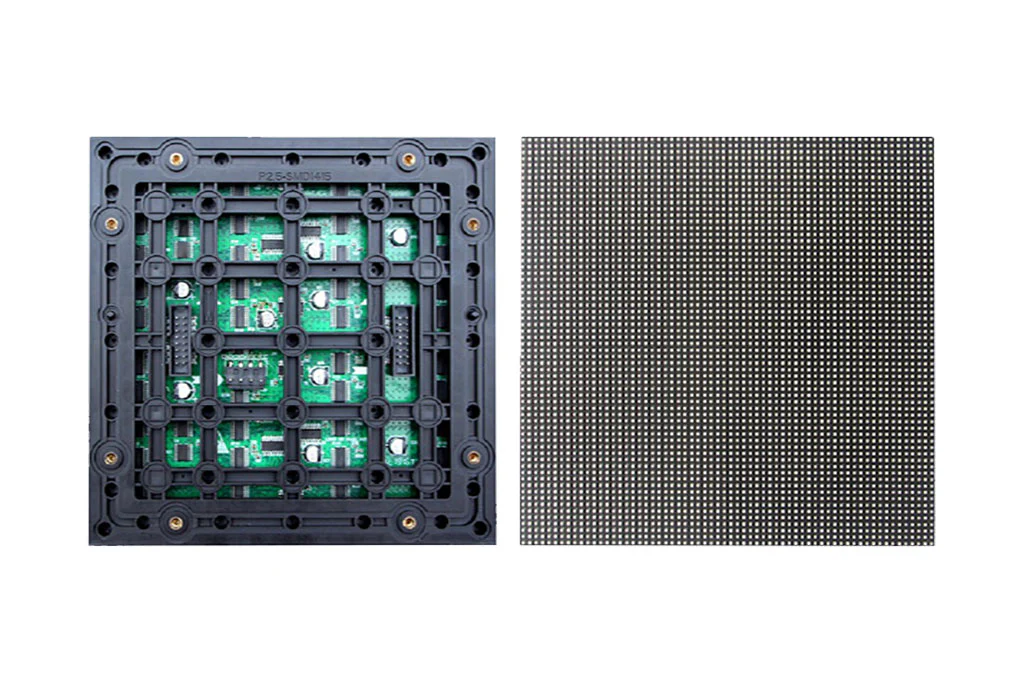

Colorlit P2.5 Outdoor LED Module
Module Size160 × 160 mm
Pixel Pitch2.5 mm
Module Resolution64 × 64 Pixels
Total Pixels4,096 Pixels
Pixel Density160,000 dots/m²
LED TypeSMD1415 RGB (1R1G1B)
Drive ModeConstant Current
Input VoltageDC 5V
Brightness≥ 5,500 nits
Viewing Angle160° Horizontal / 160° Vertical
Grey Scale14-bit
Refresh Rate1920 Hz – 3840 Hz
Frame Rate≥ 60 FPS
Waterproof RatingIP65 Front
Operating Temperature-20°C to +60°C
Lifetime≥ 100,000 Hours
Decoding Type5958
ChipFM6373C
Length160 mm
Width160 mm
Thickness18–22 mm
Weight0.28–0.38 kg
Control Card

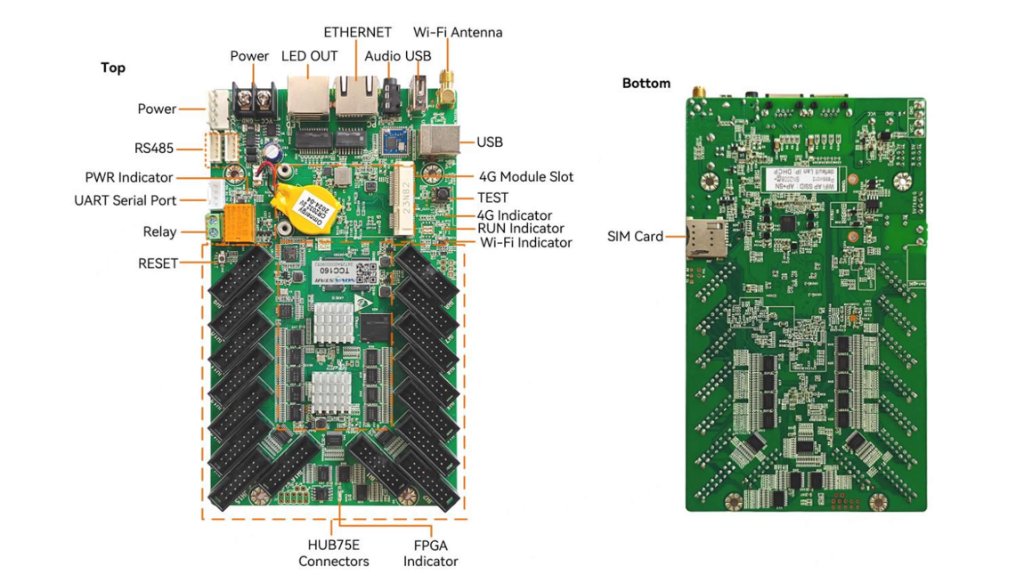

NovaStar TCC160 Multimedia Player
ManufacturerNovaStar
ModelTCC160
Product TypeAsynchronous LED Display Controller
Operating SystemAndroid 10
CPUQuad-Core ARM Processor
RAM2 GB
Storage32 GB
Input VoltageDC 5V–12V
Maximum Power Consumption12 W
Weight149.6 g
Size180.9 × 102.3 × 19.4 mm
Operating Temperature-40°C to +80°C
Humidity0–80% RH (Non-condensing)
Hardware Interfaces
InterfaceQuantityPurpose
HUB75E16Connect LED modules
RJ45 LED OUT1Connect receiving cards
RJ45 Ethernet1LAN / Network
USB Type-A1USB playback, upgrade, storage
USB Type-B1PC connection
Audio Output1External speaker
Wi-FiBuilt-inWireless configuration
4GOptionalEG25-G LTE module
GPSVia 4G moduleVehicle tracking
Power Supply
DC-DC Converter
ManufacturerLAVALEE
ModelASD-12D5N40A200DT
Converter TypeNon-Isolated Buck Converter
Input VoltageDC 10–33V
Output VoltageDC 5V
Rated Output Current40A
Maximum Output Power200W
Output TypeConstant Voltage
CoolingNatural Air Cooling (Aluminium Housing)
IsolationNo (Input and Output share common ground)
ProtectionOver Current, Short Circuit, Over Voltage
Operating Temperature-30°C to +60°C
Housing MaterialAluminium
MountingScrew Mount
Dimensions172 × 68 × 22 mm
WeightApproximately 350–450 g
Cooling

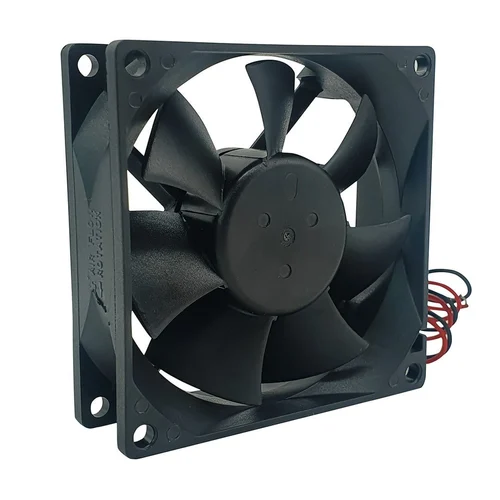

5V Brushless DC Fan
Fan TypeBrushless DC Axial Fan (BLDC)
Rated Voltage5 V DC
Operating Voltage3.5–5.5 V
Current0.08–0.30 A (size dependent)
Power0.4–1.5 W
Speed4,000–8,000 RPM
Airflow5–25 CFM (depending on size)
Weight15–20 g
Noise18–35 dBA
Motor Life30,000–70,000 hours (sleeve bearing)
Operating Temperature-10°C to +70°C
Size Reference4010 (40 × 40 × 10 mm)
Connectivity

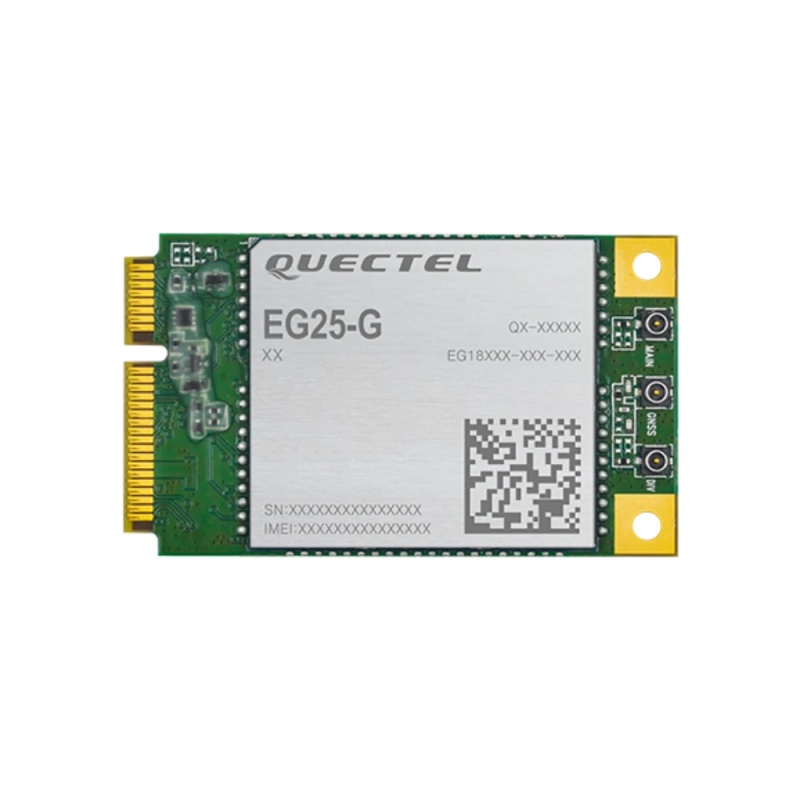

Quectel EG25-G 4G/LTE Module
ManufacturerQuectel
ModelEG25-G
Module Type4G LTE Cat 4 IoT Module
Network4G LTE, 3G WCDMA/HSPA+, 2G GSM/GPRS
LTE CategoryCat 4
Download Speed150 Mbps (LTE FDD)
Upload Speed50 Mbps (LTE FDD)
LTE TDD Speed130 Mbps DL / 30 Mbps UL
Supply Voltage3.3–4.3 V DC (3.8 V typical)
Operating Temperature−35°C to +75°C
Dimensions29 × 32 × 2.4 mm
WeightApproximately 4.9 g
GNSSGPS, GLONASS, BeiDou, Galileo, QZSS (optional variant)
USBUSB 2.0 High Speed (480 Mbps)
UART2 × UART
Power ConsumptionSleep: ~3.3 mA
Positioning

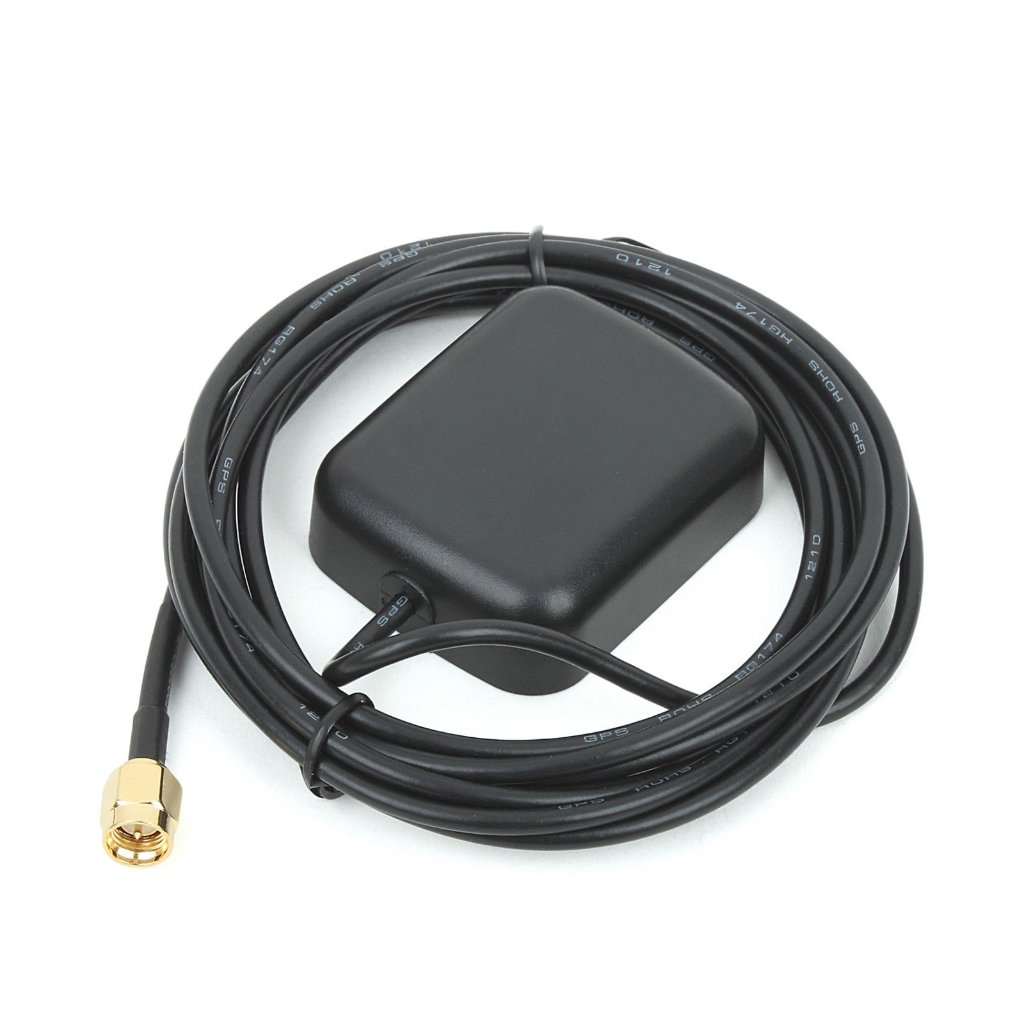

GPS/GNSS Antenna
Antenna TypeActive GPS/GNSS Antenna
ConnectorSMA Male / SMA Female
Frequency1575.42 MHz (GPS L1)
Multi-GNSS SupportGPS, GLONASS, BeiDou, Galileo, QZSS
Frequency Range1559–1606 MHz
Housing MaterialABS Plastic
MountingMagnetic Base / Adhesive Base
Waterproof RatingIP67 (Outdoor Models)
Dimensions46 × 38 × 15 mm
Weight50–100 g
Supply Voltage3.0–5.0 V DC
Current Consumption10–20 mA
Cable Length1 m, 1.5 m, 2 m, 3 m, or 5 m
Cable TypeRG174 or RG316 Coaxial Cable
Build Summary
Enclosure & Other Components

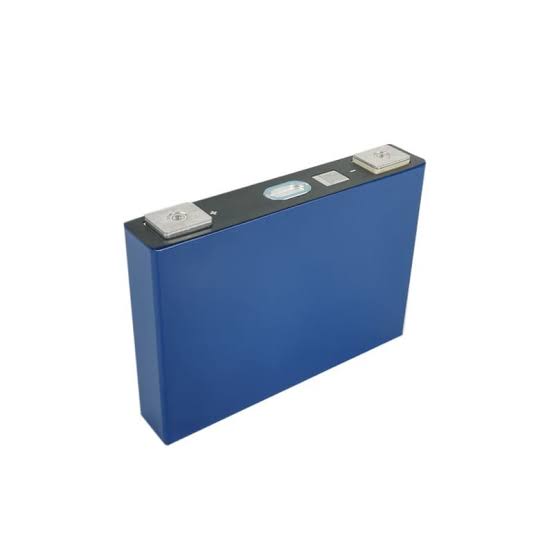

Battery
Prismatic Li-ion cell
ComponentDetailsRemarks
Box Powder CoatingBlack texture coating—
Material Sheet (Plates)0.5 mmCompany name TBD
Total Box Weight9.25 kg—
LED Component Weight5.5 kg—
Total Fyre Box Weight14.75 kg—
Rack TBDPending spec
Battery Weight / Size TBDPending spec
Acrylic Sheet1.3 mm to 2 mm, anti-scratchSize TBD
Charger Under Battery SpecsPending spec
IoT Module Under Battery SpecsPending spec
BMS (Battery Management System) Under Battery SpecsPending spec
